Specs

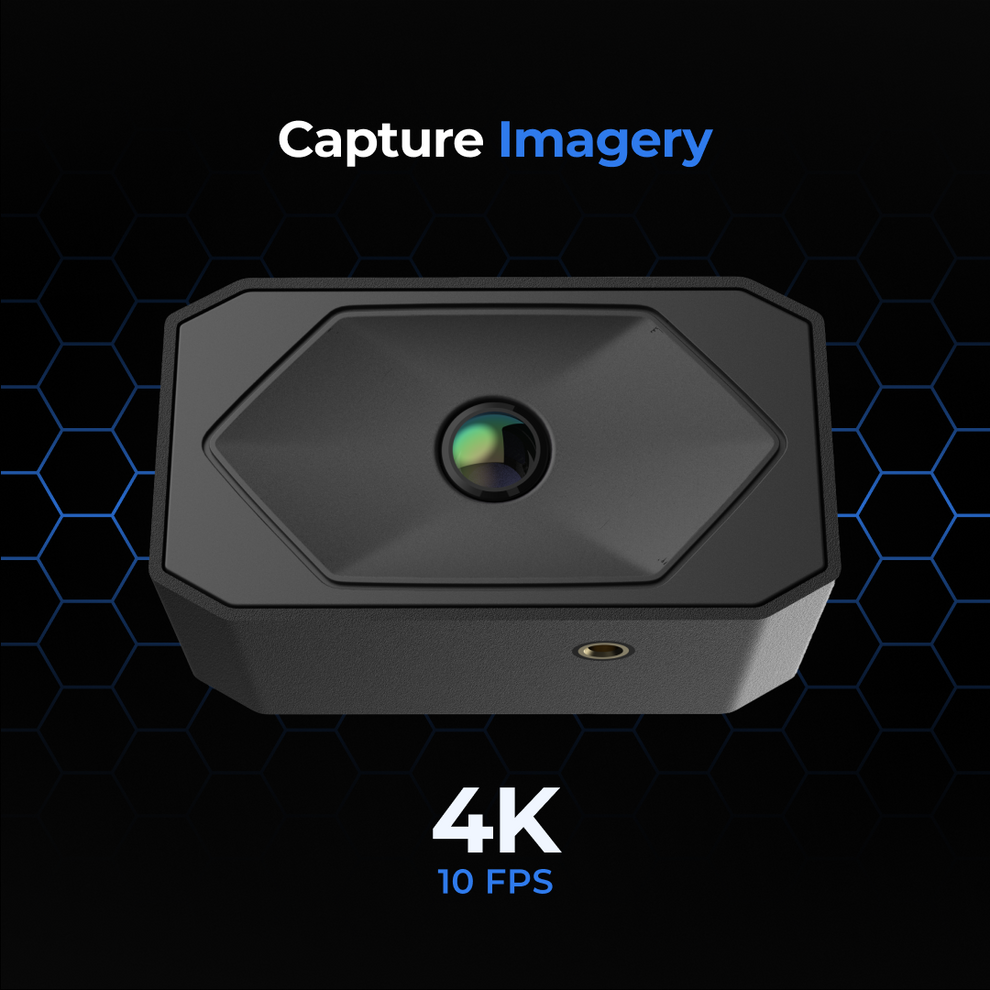

Camera Specs:
- Imager Sony IMX477
- Resolution 12.3 MP
- Sensor Format 1/2.3"
- Sensor Type Back-illuminated Stacked CMOS Image Sensor
- Shutter Rolling Shutter
- Frame Rate 10Hz
- Lens CIL227
- F# 2.5
- Vertical FOV 71 degrees
- Horizontal FOV 137 degrees
- Distortion -4.5% F-0
- Image Circle 8.2mm
Communications & Sensors:
- LoRa (Powered by Helium) Semtech SX1262 LoRa Transciever
- LoRa Antenna Supports frequencies between 868MHz-930MHz; only broadcasts appropriate regional frequency during operation
- GPS/GNSS U-Blox NEO-M9N
- GPS Antenna Taoglas SGGP.12A or Molex 2065600100
- Wifi 2.4GHz
- IMU TDK Invensense IIM-42652
Onboard Compute:
- Processor Quad-Core Cortex-A72 (ARM v8) 64-Bit SOC @ 1.5GHz
- SDRAM 2 GB LPDDR4-3200
- eMMC Flash Storage32GB
Power:
- Power input 9-28V
- Current 0.5A @ 12V
Size, Weight, & Temp:
- Dimensions WxHxD(mm)108 x 60 x 59 mm
- Weight 231g
- Operating temperature Min: 14º F | -10º C Max: 95º F | 35º C
Powered by a Raspberry Pi CM4
Specs are subject to change in future iterations of the Hivemapper Dashcam.
Overview
Mine more in minutes
Getting started mining HONEY is as easy as 1, 2, 3.
Simply install the Hivemapper Dashcam and drive.
Oh, we guess it’s even simpler than we thought.
You drive. We’ll do everything else.
The Hivemapper Dashcam comes complete with everything you need right out of the box.
- Collects and transfers high quality imagery automatically to the Hivemapper network via our app.
- Self-identifies only what the map needs to ease up on data being backhauled.
- Let’s you track your mining rewards automatically through the Hivemapper Contributor App.
- The only thing it doesn’t do is ever invade your privacy. It only collects what the map needs and absolutely nothing else.
Driving: the newest way to mine crypto
The Hivemapper Dashcam is designed for seamless decentralized mapping on the Hivemapper network.
While you drive, you’re not only mining and earning HONEY for yourself, you’re building a better map for the world. One that future-focused businesses and developers can use to run their apps and operations.
Privacy by design
Nothing against you, but the Hivemapper Dashcam doesn’t need or want to see your face. We built the dashcam with everything you need to map and mine. There are no hidden backdoors, so it only collects what the map needs and never anything else.
Don’t just drive,
map and mine
After a 20-minute initial install, you can then forget about the Hivemapper Dashcam as it will be mapping in the background and uploading imagery after collecting.
With the Hivemapper Dashcam you are growing an ever-updating map of our world, built by the people who know it best - all of us.
Everything you need
in one box
We’re all about earning, not spending. Absolutely everything you need to get started
is delivered directly to you in one nifty package.
What’s included
- Hivemapper Dashcam (with USB-C rubber port plug)
- Power cord for 12v cigarette lighter adapter
- Mount assembly for attaching the Hivemapper Dashcam to your vehicle
